This high-performance lighting fixture from a leading China manufacturer combines versatility and advanced features, making it an ideal choice for a variety of applications. Equipped with a powerful 400W LED light source, it offers a color temperature reaching up to 7500K and boasts an impressive lifespan of 50,000 hours. The fixture supports extensive movement capabilities with 540° pan and 270° tilt rotation, complete with automatic position correction, As one of the top lighting suppliers in the industry, we provide rotating and static gobo wheels that feature a total of 18 gobos plus an open effect, allowing for dynamic gobo rotation and shaking effects. The rich color system includes 14 colors along with an open effect, and supports CMY color mixing and linear CTO adjustment to create stunning half-color and rainbow effects, Designed with flexibility in mind, this fixture offers a beam angle adjustment range of 2-40°, dual prism effects (including a 4-sided prism and bar prism), and a medium atomizing disk. With 0-100% linear dimming capabilities, high-speed electronic strobe adjustment (with a strobe rate of 1-25 times/second or random strobe), and an IP22 rating, it meets the demands of professional environments, The lighting fixture is compatible with DMX512 control and features multiple built-in programs that can be upgraded via DMX. Easy adjustments for address code and lamp resets can be made from the console. An intuitive LCD display with a graphical menu, along with a four-button touch panel, ensures effortless operation. Trust our China factory for high-quality lighting solutions that elevate your events and productions

Product Description

Product application

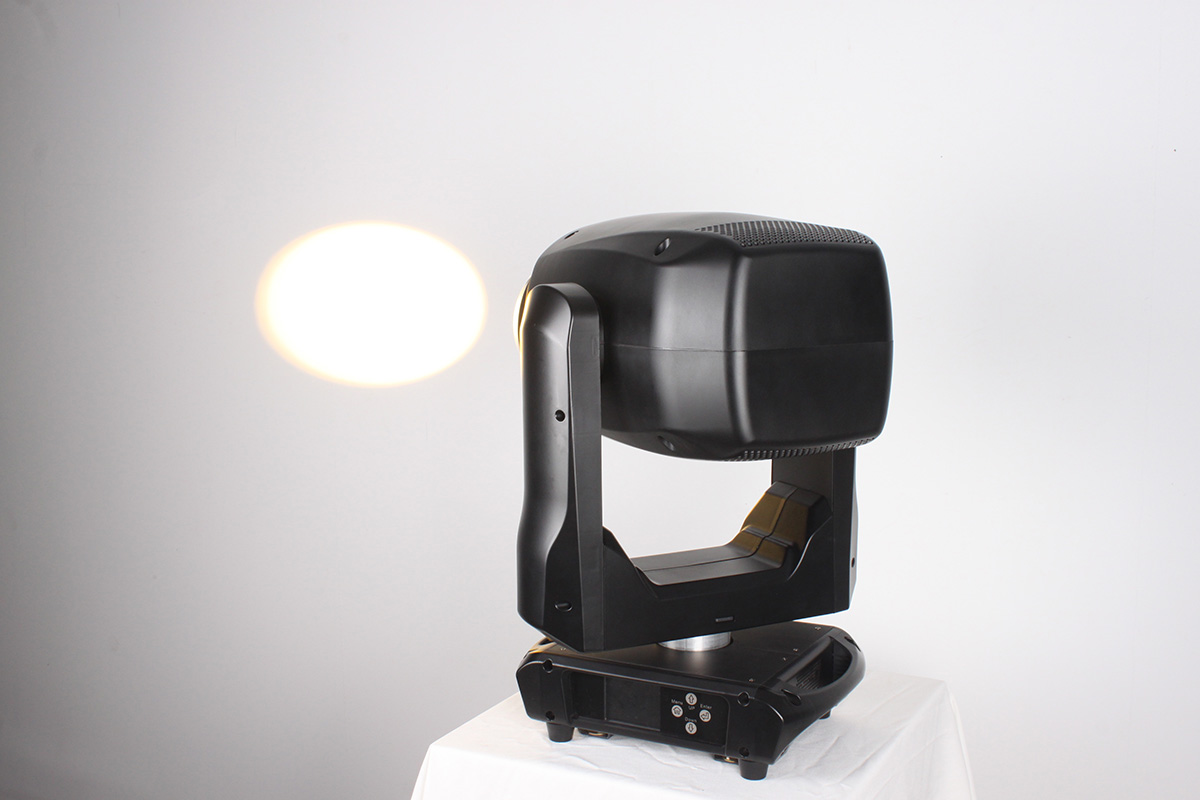

CL400 (2)

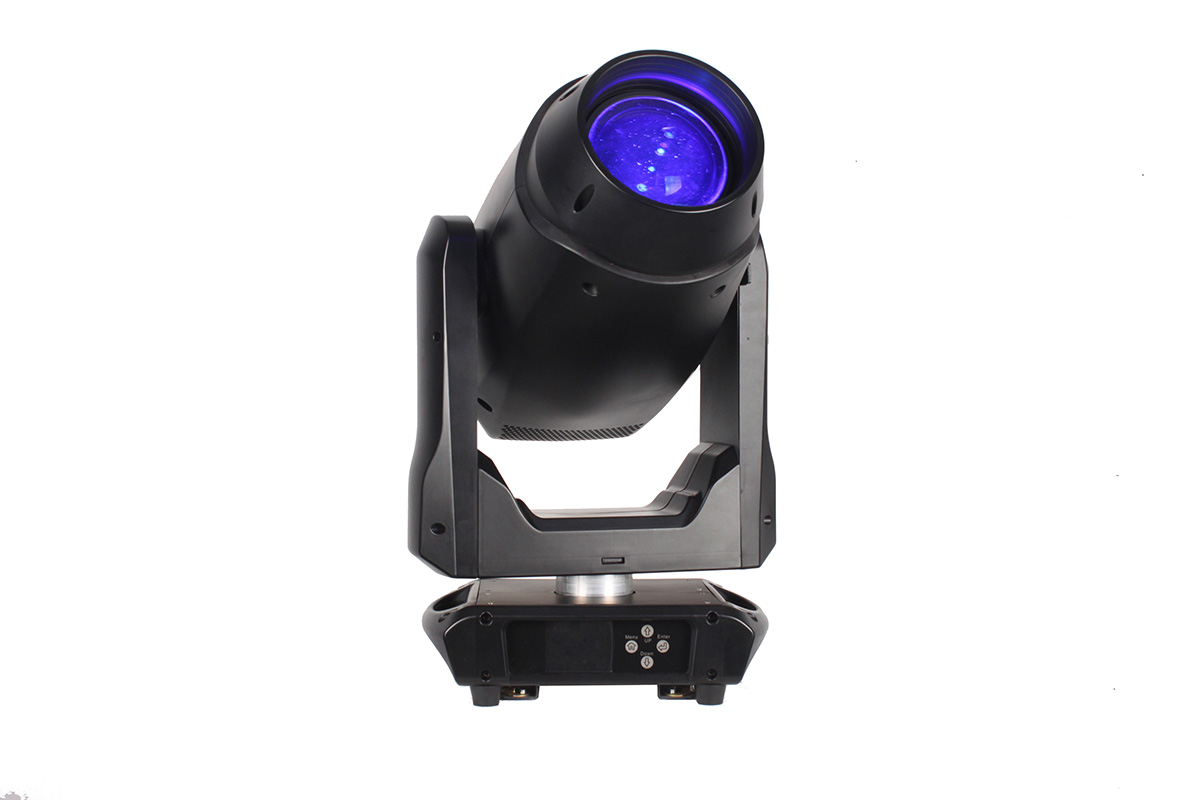

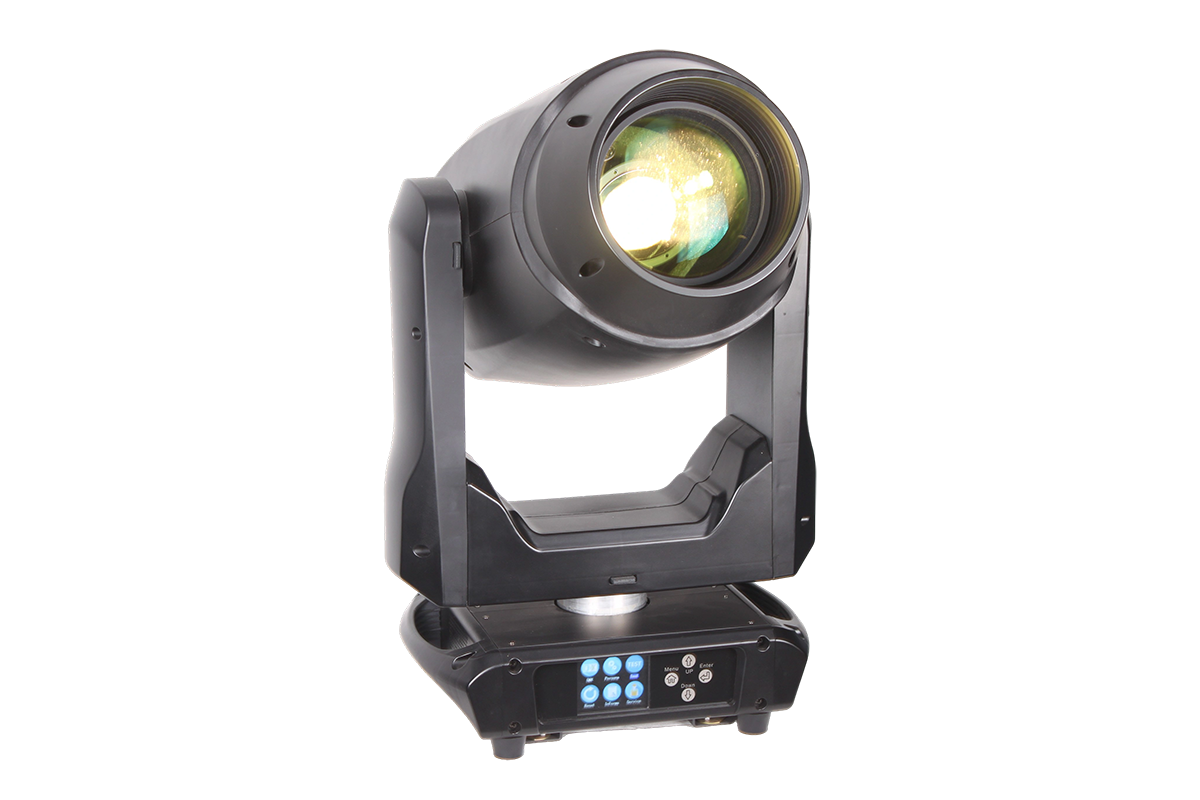

CL400 (1)

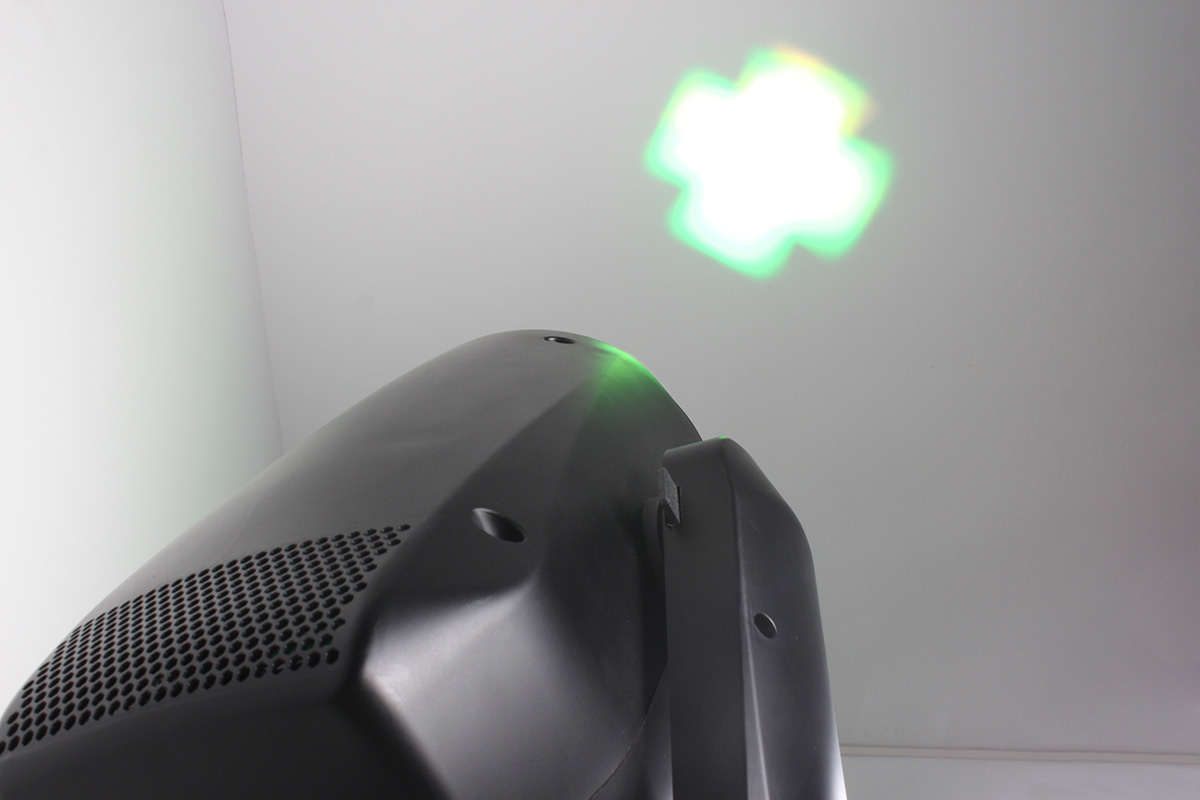

CL400 (3)
CL400 (1)

Technical Specifications

Optical/Power Systems

  • Light source: 400W LED, CCT 7500K.
  • Life expectancy: 50,000H.

Pan & Tilt

  • Pan movement: 540°(16bit).
  • Tilt movement: 270°(16bit).
  • Automatic Pan/Tilt position correction.

Rotating & Static Gobos

  • Rotating wheel: 7 gobos+open.
  • Static wheel: 11 gobos +open.
  • Gobo rotation and Gobo shaking.

Color System

  • 1 Color wheel: 14 colors + open.
  • CMY color mixing + Linear CTO.
  • Half color and rainbow effect.

Effects

  • Beam angle: 2-40°
  • Prism: one 4-sided prism, one bar prism
  • Atomization: one medium atomizing disk
  • Dimming: 0-100% linear dimming
  • Strobe: high-speed electronic strobe adjustment
  • Strobe rate: up to 1-25 times/second or random strobe

IP Rating

  • IP22

Software

  • Multiple built-in programs
  • Upgrade with DMX
  • Channels: 22/25 CH
  • The address code and lamp reset can be changed from the console.

Display

  • LCD display
  • Graphical menu display
  • Four buttons touch panel

Control

  • DMX512 control
  • Input signal isolation
  • RDM protocol
  • The address code and lamp reset can be changed from the console.

Electric Parameter

  • AC90-260V 50/60HZ
  • Power: 480W

Dimension & Weight

  • Product size: 354*233*638 mm
  • Net weight: 15KG

Product feature

  • Efficient Light Source: Features a 400W LED with a CCT of 7500K and a lifespan of up to 50,000 hours.
  • Flexible Rotation: Supports 540° pan and 270° tilt movements with automatic position correction.
  • Rich Gobos: Equipped with rotating and static gobo wheels, featuring gobo rotation and shake effects.
  • Colorful Palette: 14-color wheel + CMY color mixing + linear CTO, achieving half-color and rainbow effects.
  • Diverse Effects: Adjustable beam angle (2-40°), with a 4-sided prism and bar prism, medium fog effect, linear dimming (0-100%), high-speed electronic strobe, and strobe rates up to 1-25 times/second or random strobe.
  • Intelligent Control: Multiple built-in programs, DMX upgrade support, 22/25 channels, address code and lamp reset via console.
  • Intuitive Display: LCD display with graphical menu and a four-button touch panel for easy operation.
  • Professional Control: Supports DMX512 control, input signal isolation, and RDM protocol compatibility.
  • Versatile Power Adaptability: AC90-260V 50/60HZ input voltage range with a power consumption of 480W.

Frequently Asked Questions

What is the light source and expected lifespan of this product?
The fixture is equipped with a high-efficiency 400W LED light source with a CCT of 7500K, offering an impressive lifespan of up to 50,000 hours.
What are the Gobo features and effects available?
It features a rotating gobo wheel with 7 gobos + open and a static gobo wheel with 11 gobos + open. It also supports dynamic effects such as gobo rotation and gobo shaking.
Does it support CMY color mixing and CTO adjustment?
Yes, the color system includes a 14-color wheel (+ open), full CMY color mixing, and a linear CTO, allowing for smooth color transitions, half-color effects, and rainbow effects.
What control protocols and DMX channels does it use?
It supports DMX512 control, RDM protocol, and input signal isolation. It operates on 22 or 25 channels, and the address code as well as lamp reset can be adjusted remotely via the console.
What is the IP rating and power consumption of the fixture?
The fixture has an IP22 rating. It is designed to run on AC90-260V at 50/60HZ with a total power consumption of 480W.
What are the physical dimensions and weight of the product?
The product dimensions are 354*233*638 mm, and it has a net weight of 15KG, making it highly compact and versatile for various stage set-ups.
