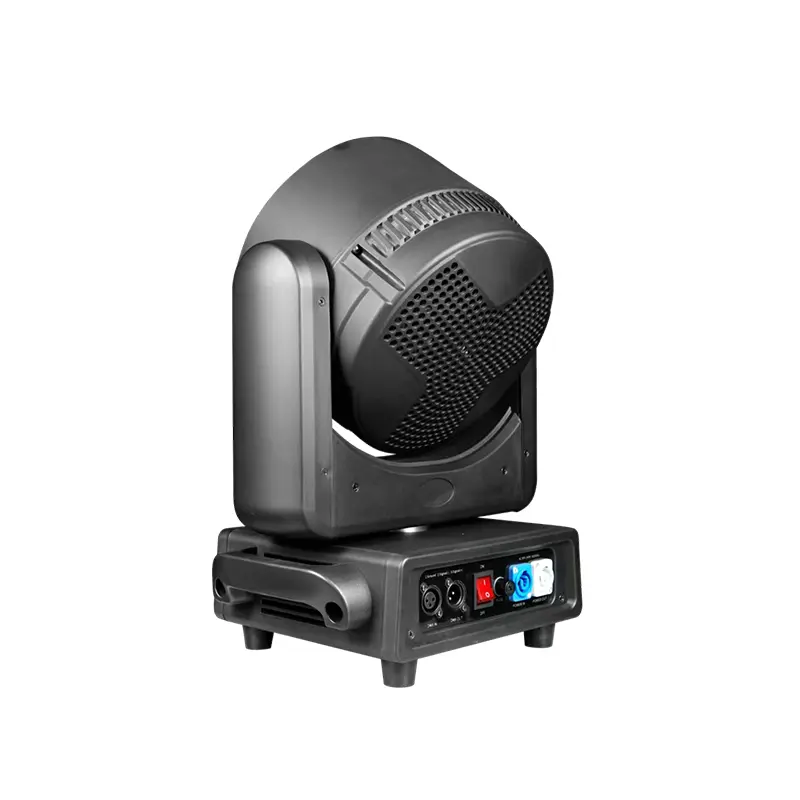

CE Certification High-Performance LED Wash Effect 1940Z Lighting Fixture - China Suppliers & Factory with RGBW 4-in-1 LEDs Supplier, Factories

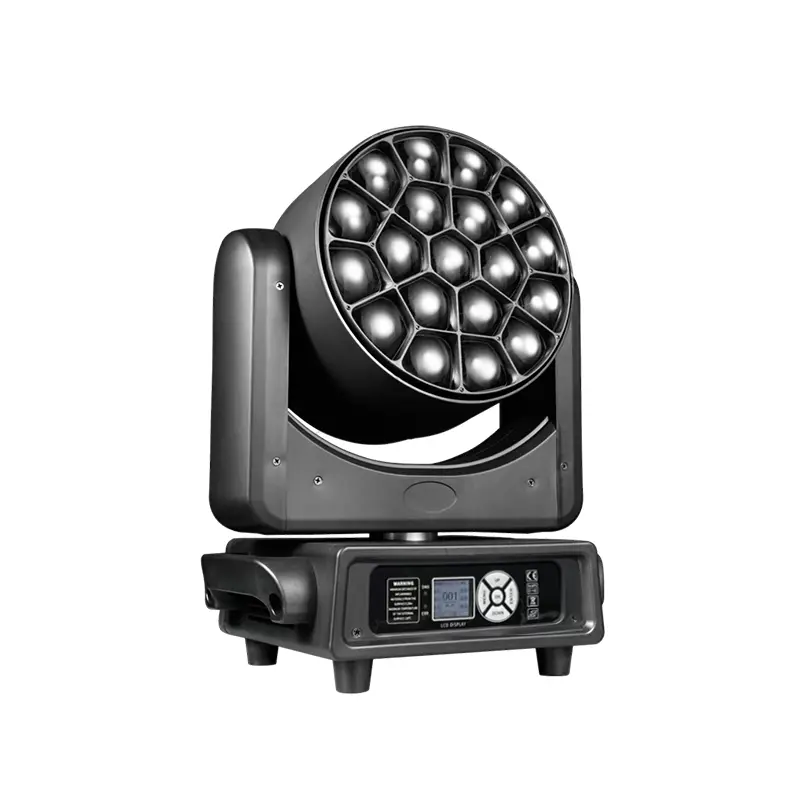

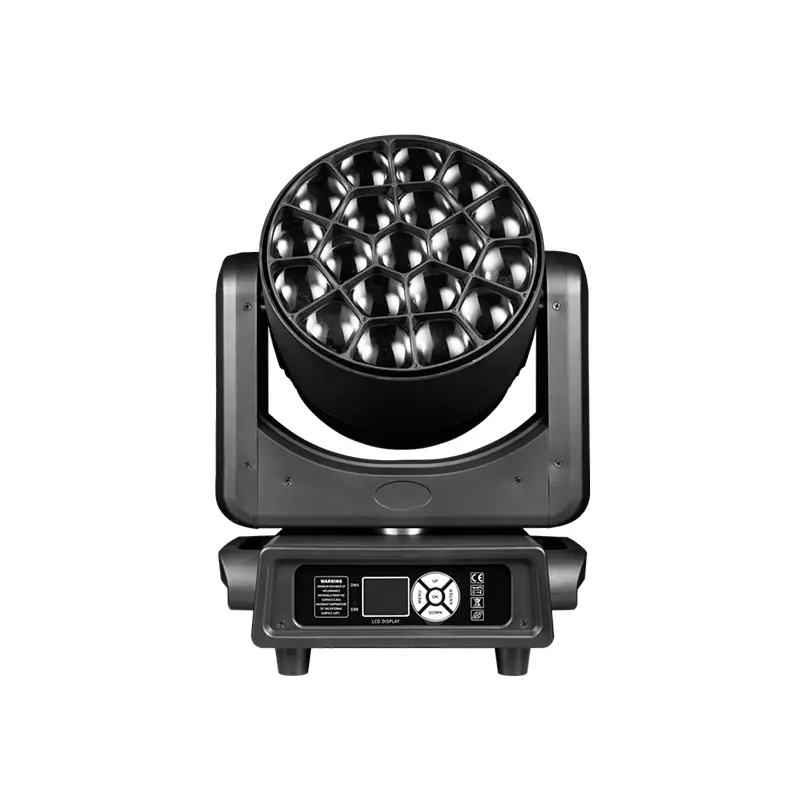

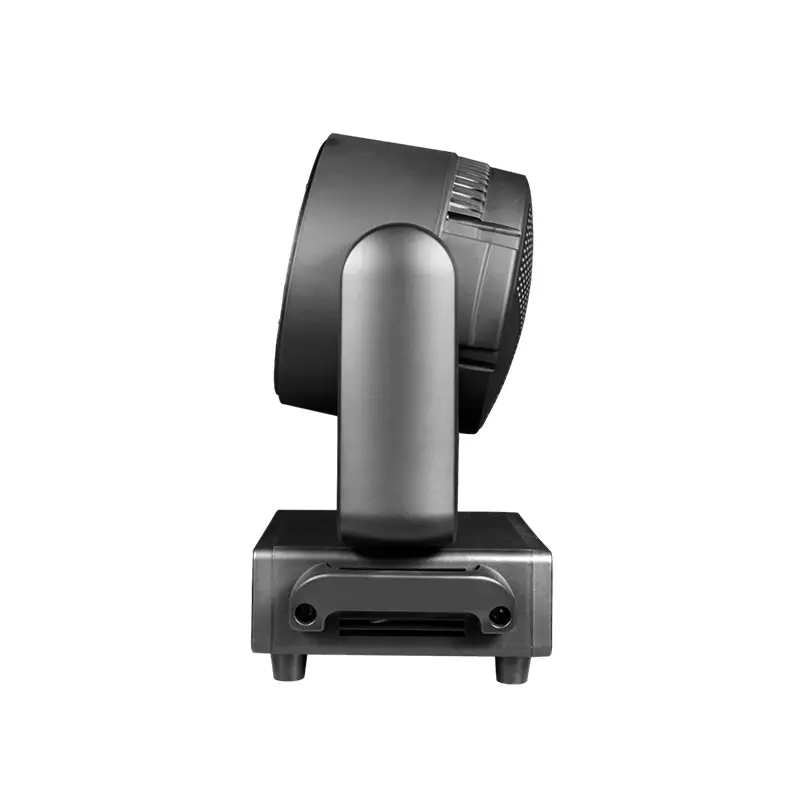

Introducing our high-performance lighting fixture, designed for exceptional illumination and versatility. This cutting-edge product operates on an AC power input of 100-240V at 50/60Hz, with a robust power consumption of 840W. It features 19 advanced 40W RGBW 4-in-1 LED chips, ensuring a long-lasting lifespan of up to 50,000 hours. With an IP20 rating, this fixture is built to withstand indoor environments and comes equipped with a reliable fan cooling system, capable of handling ambient temperatures up to 45℃, The sleek black case design adds a modern touch, making it suitable for various settings. Our lighting fixture boasts a powerful control system that supports multiple DMX channel options and various operating modes, including DMX, master-slave, auto, and sound activation. Enjoy precise and rapid movement with 540° horizontal (8-bit) and 270° vertical (16-bit) rotation capabilities. A user-friendly full-color LCD touchscreen enhances operational ease, Additionally, the adjustable fan speed ensures optimal performance based on the fixture's temperature. Experience an array of stunning color effects created through RGBW color mixing, with an adjustable beam angle ranging from 3-45°, a dimming range of 0-100%, and support for linear strobe, random strobe, and pulse strobe effects. This product is manufactured by leading suppliers in China, providing high-quality fixtures directly from our factory

Product Description

Product Application

Power Supply

  • Input Voltage: AC100-240V 50/60Hz
  • Power Consumption: 840W

Luminaire Specifications

  • IP Rating: IP20
  • Cooling Method: Fan Cooling
  • Maximum Ambient Temperature: 45℃
  • Case Color: Black

LED Specifications

  • LED: 19 pieces of 40W RGBW 4-in-1 LEDs
  • Average Lifespan: 50,000 hours

Control System

  • DMX Channels: 21/23/35/78/92/97/99CH

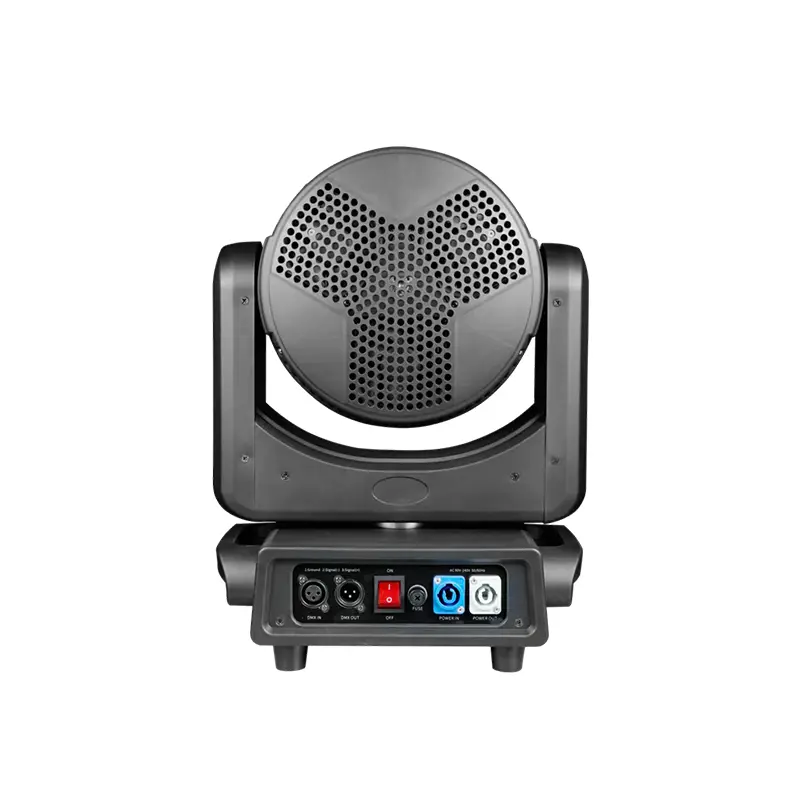

  • DMX Connectors: 3-pin + 5-pin XLR Input/Output
  • Power Connectors: Cannon Input/Output
  • Control Modes: DMX / Master-Slave / Auto / Sound Activation

Movement Capabilities

  • Horizontal: 540°/360° with 8-bit precision
  • Vertical: 270° with 16-bit precision
  • Precise and rapid X/Y-axis rotation

Display

  • Full-color LCD touchscreen with 4 buttons

Fan Speed Adjustment

  • Automatically adjusts based on fixture temperature

Color Effects

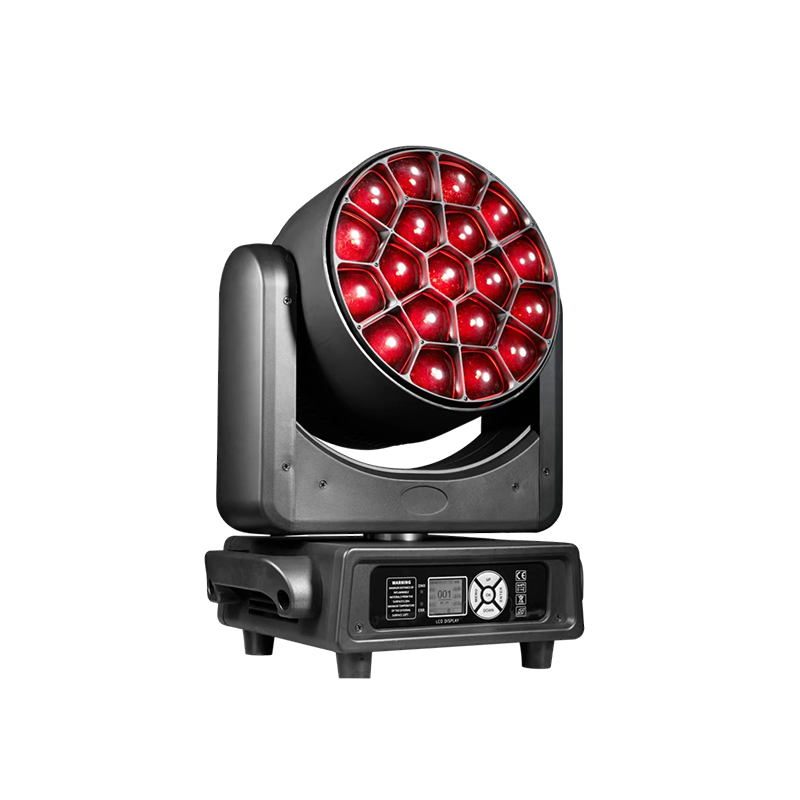

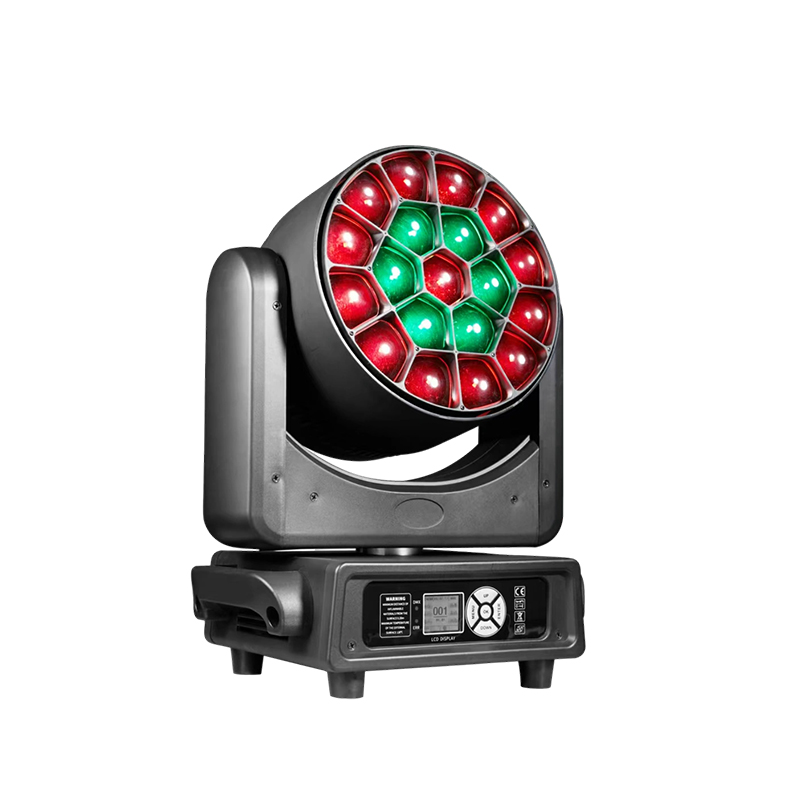

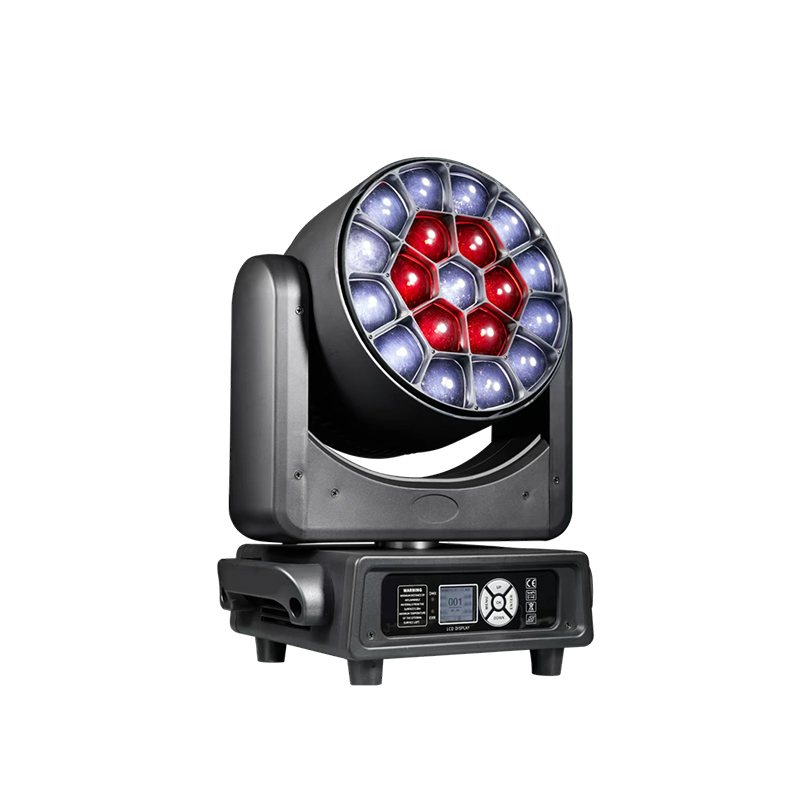

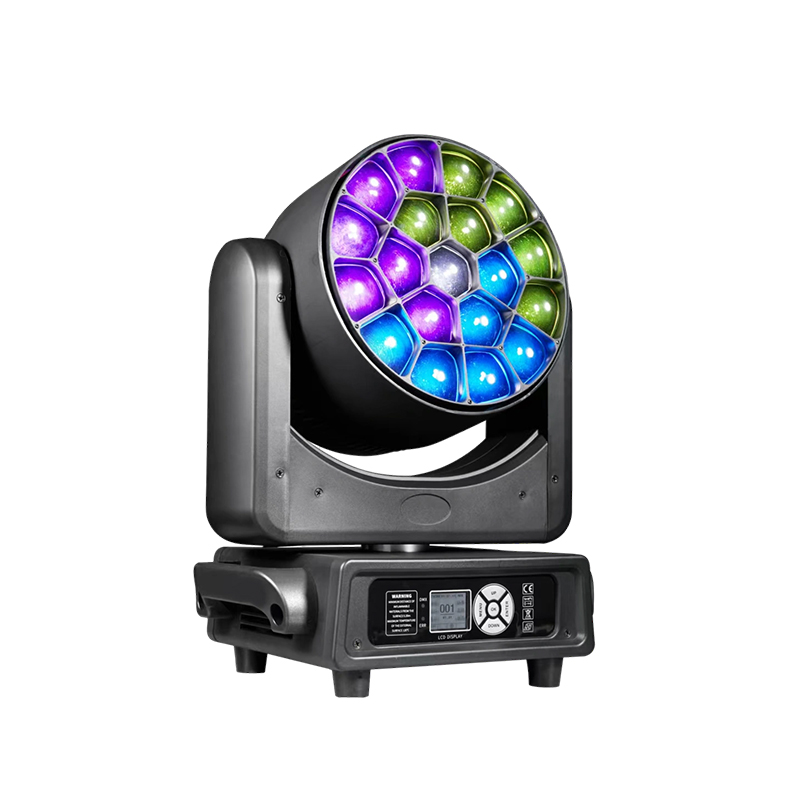

  • RGBW color mixing
  • Beam Angle: 3-45° adjustable
  • Dimming: 0-100% linear
  • Strobe: 0-25Hz, random strobe, and pulse strobe

Product Features

Universal Compatibility: Supports AC100-240V 50/60Hz power input with a power consumption of 840W, meeting the needs of different countries and regions.
Robust and Durable: IP20 rated protection for use in various environments; black case design for both aesthetics and durability.
Efficient Cooling: Employs fan cooling to ensure stability under high-intensity use, with a maximum ambient temperature tolerance of 45℃.
Superior Light Source: Equipped with 19 pieces of 40W RGBW 4-in-1 LED chips, offering a long average lifespan of 50,000 hours, rich colors, and high brightness.
Flexible Control: Supports multiple DMX channel options (21/23/35/78/92/97/99CH) with 3-pin + 5-pin XLR connectors, and features DMX, master-slave, auto, and sound activation control modes to meet diverse scenario needs.
Precise Rotation: Offers precise and rapid X/Y-axis rotation with 540°/360° (8-bit) horizontal and 270° (16-bit) vertical movement for accurate positioning.
Intelligent Operation: Includes a full-color LCD touchscreen with 4 buttons for intuitive and easy operation; fan speed adjusts automatically based on fixture temperature for energy efficiency.
Rich Color Effects: RGBW color mixing technology with adjustable beam angles from 3-45°, dimming range of 0-100%, and support for linear strobe, random strobe, and pulse strobe to create diverse visual effects.

Frequently Asked Questions

Q What is the power input and power consumption of this light?
The system supports a universal input voltage of AC100-240V at 50/60Hz, with a total power consumption of 840W.
Q What are the specifications of the light source?
It uses 19 pieces of 40W RGBW 4-in-1 LEDs with an average operational lifespan of approximately 50,000 hours.
Q How does the cooling system work, and what is its limit?
The fixture relies on an intelligent fan cooling system where the fan speed automatically adjusts based on the internal temperature. It is designed to work in ambient temperatures up to 45℃.
Q What control options and DMX channels are available?
It features DMX, Master-Slave, Auto, and Sound Activation modes. DMX channel options include 21, 23, 35, 78, 92, 97, and 99 channels, utilizing 3-pin and 5-pin XLR connectors.
Q What are the movement capabilities of the fixture?
It provides precise and rapid X/Y-axis rotation, featuring a horizontal movement range of 540°/360° (with 8-bit precision) and a vertical range of 270° (with 16-bit precision).
Q What kind of beam angles and dimming functions does it support?
It supports RGBW color mixing, an adjustable beam angle from 3° to 45°, 0-100% linear dimming, and strobe frequencies from 0 to 25Hz, including random and pulse strobe effects.
