CE Certification 100W LED Beam Light CAT100 from China Suppliers - High-Quality Stage Effects with 50,000 Hours Lifespan Manufacturers, Supplier

Introducing the iTOPLITE Optoelectronics CAT 100 LED Beam Light, a premium lighting solution from a leading China supplier and factory. This powerful 100W LED light source produces stunning illumination with a color temperature of 7500K and an impressive lifespan of up to 50,000 hours. Designed for versatility, it offers 120° horizontal and 90° vertical rotation, making it ideal for any stage setting. The unit comes with 8 gobos and 1 beam reducer, allowing for a rich palette of colors and varied effects, Enhancing its performance, the CAT 100 features 0-100% linear dimming, an adjustable-speed mechanical shutter, and strobe effects ranging from 1-25Hz, including a random mode. This LED beam light is the perfect choice for professionals seeking reliable and dynamic lighting solutions for their events. Trust iTOPLITE for high-quality products that deliver exceptional results

Product Description

Product Application

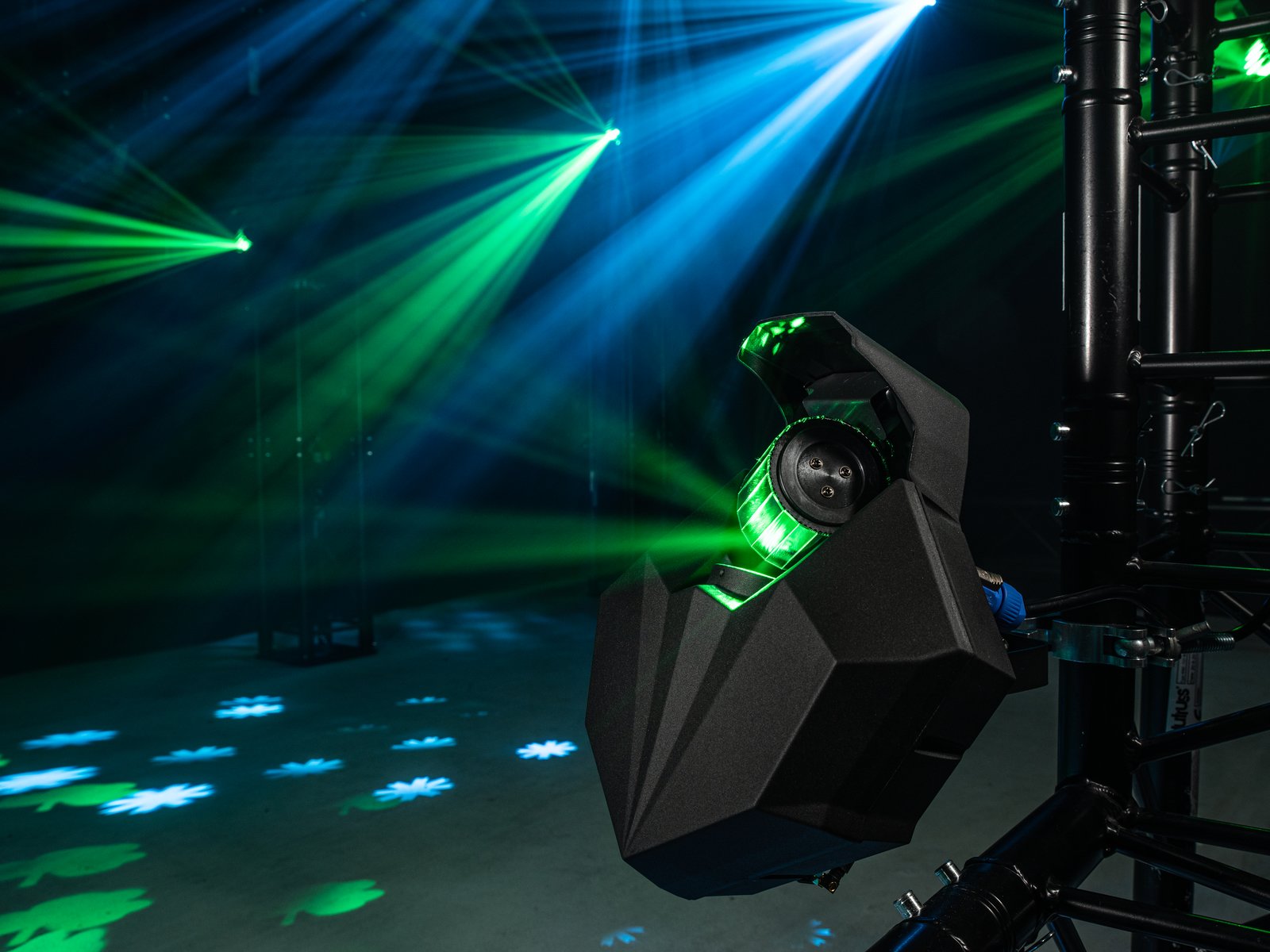

88W LED Lighting Application 1

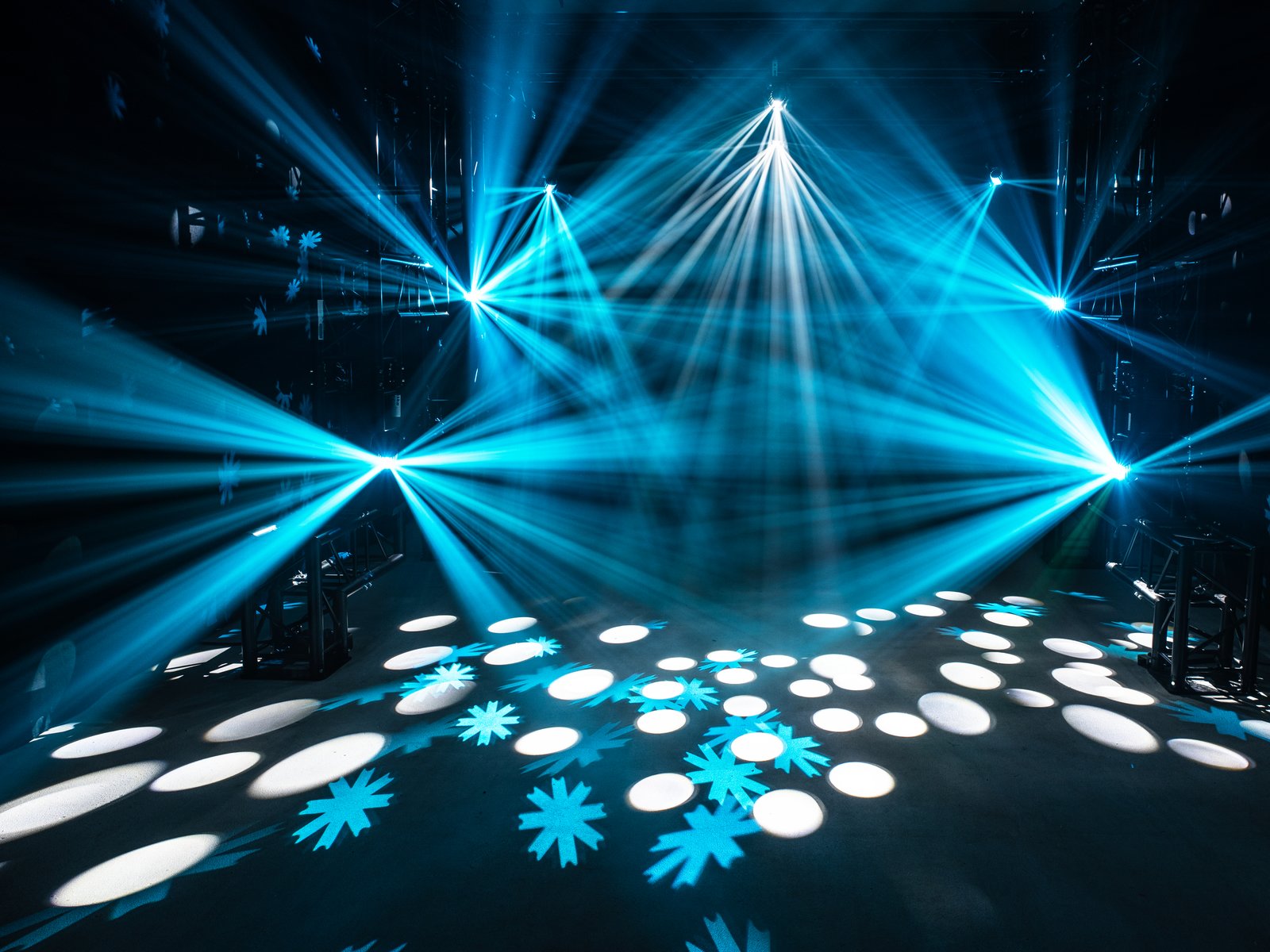

88W LED Lighting Application 2

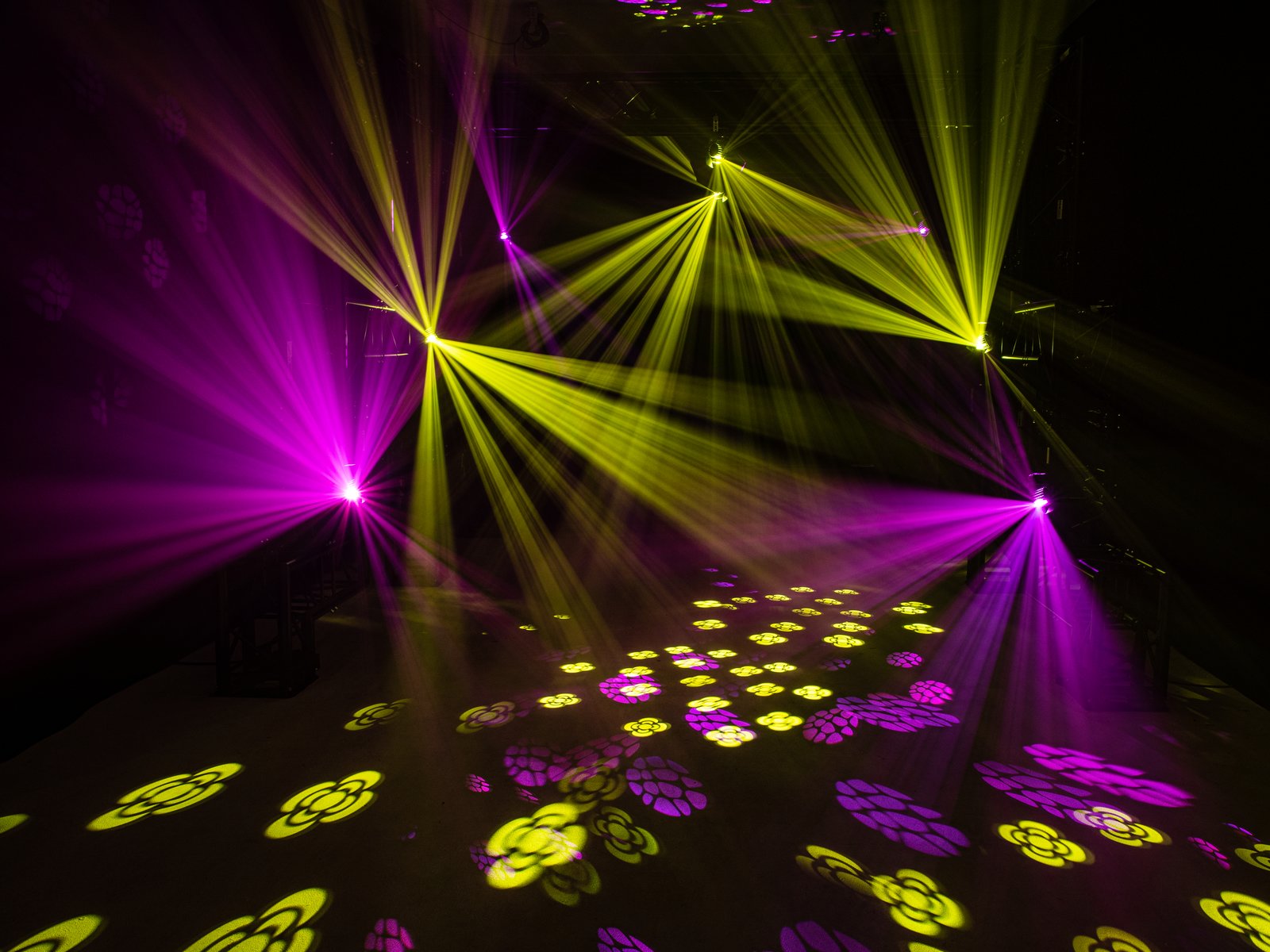

88W LED Lighting Application 3
Optical System
  • Light source: 88W LED, CCT 7500K
  • Life expectancy: 50,000H
Pan & Tilt
  • Pan movement: 120° (16 bit)
  • Tilt movement: 90° (16 bit)
Gobos Wheel
  • Gobo: 8 gobo + 1 beam reducer
  • Bi-directional rotation with gobo shaking
Color System
  • Color wheel together with gobo wheel
Effects
  • Beam Angle: 60°
  • Mirror ball roller with continuous rotation
  • Dimming: 0-100% linear dimming
  • Shutter: mechanical with various speed
  • Strobe: 1-25Hz or random
IP Rating
  • IP22
Software
  • Multiple built-in programs
  • Upgrade with DMX
  • Channels: 7 CH
  • Remote reset DMX address by RDM
Display
  • LCD display
  • Four buttons touch panel
Control
  • DMX512 control
  • Input signal isolation
  • RDM protocol
Electric Parameter
  • AC90-260V 50/60HZ
  • Power: 100W
Dimension & Weight
  • Product size: 317*285*157 mm
  • Net weight: 3.5KGs
Product Feature
  • High-efficiency Light Source: Equipped with a 88W LED, with a color temperature of 7500K and a lifespan of up to 50,000 hours.
  • Rich Effects: Equipped with 8 gobos + 1 beam reducer, capable of achieving rich effects through the color wheel and gobo wheel.
  • Precise Control: Features 0-100% linear dimming and a mechanical shutter with various speed settings to meet diverse scene requirements.
  • Convenient Operation: Supports DMX512 control with RDM protocol, allowing remote reset of DMX addresses. Equipped with a cold LCD display and a four-button touch panel for easy user operation.
Frequently Asked Questions
Q1: What is the lifespan of the 88W LED light source?
The high-efficiency LED light source is designed to last up to 50,000 hours, ensuring long-term reliability and low maintenance.
Q2: Does this device support remote DMX addressing?
Yes, it supports the RDM protocol, which allows for remote resetting and management of DMX addresses via a compatible controller.
Q3: What are the primary control options available?
The unit can be controlled via DMX512 (7 channels) and features an onboard LCD display with a four-button touch panel for manual adjustments.
Q4: Is the dimming smooth for professional stage use?
Yes, the device features 0-100% linear dimming and a mechanical shutter, providing smooth transitions and various strobe speeds for professional effects.
Q5: What is the beam angle and movement range?
The beam angle is fixed at 60°. For movement, it offers a Pan range of 120° and a Tilt range of 90°, both with high-precision 16-bit resolution.
Q6: Can this light be used in outdoor environments?
This product has an IP22 rating, meaning it is protected against solid objects and light vertical water drops. It is primarily designed for indoor use.
