iTOPLITE
1 / 4
Light source: 800W LED, CCT 7000K
Life expectancy ＞ 30,000H
High-efficiency optical system, make high contrast beam
Beam angle: 6-50°
Output: 28,000 lumens
Pan movement: 540°
Tilt movement: 270°
Automatic Pan/Tilt position correction
Tri-phase stepper motor technology for ultra-fast silent movements
8 bit & 16 bit resolution
Rotating wheel: 7 gobos + open
Static wheel: 8 gobos + open
Gobo rotation and Gobo shaking
1 Color wheel: 6 colors + open
CMY color mixing + Linear CTO
Half color and rainbow effect, color macro
Electronic focus adjustment, ultra-smooth zoom control
Zoom range: 6°- 50°
5%-100% linear Iris
Strobe: Variable from 1-25 per second or random strobe
Dimming: 0-100% linear dimming
Frost: 0-100% even soft light effect

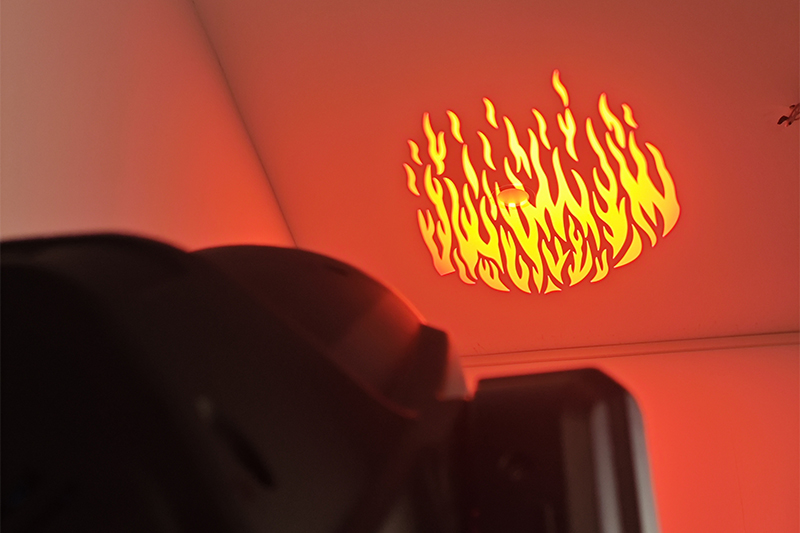

Effect disk: Creates dynamic effects such as flames and flowing water
Prism disk: One 3-facet, Prism index and any position function
IP22
4 individually positionable blades with full field travel
90° rotation of the complete framing
Multiple built-in programs
Upgrade with DMX
Channels: 29/32 CH
The address code and lamp reset can be changed from the console
LCD display
Graphical menu display
Four buttons touch panel
DMX512 control
Input signal isolation
RDM protocol
AC90-240V 50/60HZ
Power: 900W
Product size: 450*346*782 mm
Net weight: 32KG
800W LED light source, high brightness, uniform light spot, adjustable color temperature.
540° horizontal, 270° vertical scanning, fast and stable with automatic error correction.
CMY+CTO color mixing system, color temperature linearly adjustable from 2700K to 7000K, even and smooth colors.
Rotating and fixed gobo wheels, pluggable gobos, easy to replace, precise positioning.
4-blade cutting system, 90° rotatable, achieving flexible spot control.
Rotating 3-facet prism, reversible rotation, more effect options.
Electronic focus, iris change, strobe, dimming, fogging, and other diverse adjustments.
High-brightness color LCD display, 4 touch buttons, multiple preset programs built-in.
IP22 Protected rating, input signal isolation protection, automatic high-temperature protection.
Optional built-in wireless function, advanced RDM capabilities.
A1: The fixture features a high-power 800W LED light source with a CCT of 7000K, offering an expected lifespan of over 30,000 hours.
A2: The fixture has a high-efficiency optical system with an adjustable zoom range from 6° to 50° and a maximum output of 28,000 lumens.
A3: The framing module consists of 4 individually positionable blades with full field travel, and the complete framing assembly can rotate up to 90°.
A4: It supports DMX512 control, input signal isolation, and RDM protocols, operating on 29 or 32 control channels depending on the mode.
A5: The product dimensions are 450*346*782 mm, and it has a net weight of approximately 32KG.
A6: The fixture has an IP22 rating, which provides protection against solid objects larger than 12.5mm and direct sprays of water up to 15° from vertical.
